- Weight: 9.5KG

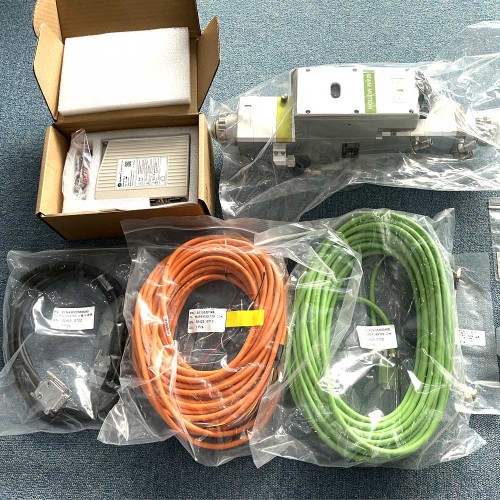

BM110 Series Automatic Focusing Fiber Laser Cutting Head
High-Precision Laser Cutting Head by RAYTOOLS AG (Switzerland)
The BM110 Series is a professional-grade automatic focusing fiber laser cutting head, developed by RAYTOOLS AG of Switzerland and introduced in 2019. Engineered for high-speed, high-precision laser processing, this cutting head is designed for continuous, stable operation under high-power laser systems.
It features a built-in motorized drive system that adjusts the focusing lens within a 24mm range via a linear mechanism. Through programmable control, the BM110 enables automatic and continuous focus adjustment, allowing for fast piercing of thick metal sheets and adaptive cutting of various material types and thicknesses.
The system integrates a D30 compound lens group to optimize beam shaping, while the advanced optical path and water-cooling design enhance stability and longevity, even in demanding industrial environments.
Key Features
- Optimized Optical and Cooling Design
- High-performance optical components and smooth, efficient airflow contribute to enhanced cutting quality, energy efficiency, and consistent operation.
- Automatic Motorized Focusing
- Supports fully automatic focusing within a range of -12 mm to +10 mm, with a focusing accuracy of 0.05 mm, reducing manual adjustments and boosting productivity.
- Multi-Layer Lens Protection
- Additional collimation protection lenses help extend optical life by preventing contamination and wear.
- Drawer-Style Lens Holder
- Enables fast and simple protective lens replacement, minimizing downtime.
- Universal Laser Source Compatibility
- Compatible with a wide range of fiber interfaces including QBH, QD, and G5, making it adaptable to nearly all mainstream fiber laser sources on the market.
Applications
- High-power fiber laser cutting systems
- Sheet metal processing
- Industrial manufacturing and fabrication
- Cutting stainless steel, carbon steel, aluminum, and other metals
Technical Specifications
- Fiber Interface: QBH, QD, G5
- Clear Aperture: 28 mm
- Focus Adjustment Range: -12 mm to +10 mm
- Focus Speed: 170 mm/s
- Focus Accuracy: 0.05 mm
- Focus Acceleration: ?10 m/s²
- Collimating Protective Lens: ?24.9 mm × 1.5 mm
- Focusing Protective Lens: ?27.9 mm × 4.1 mm
- Nozzle Types: Single-layer, double-layer, non-standard
- Nozzle Aperture Sizes: 0.8 mm to 5.0 mm (in 0.1–0.5 mm increments)
- Assist Gas Pressure: ?30 bar
- Weight: Approx. 5.0 kg
