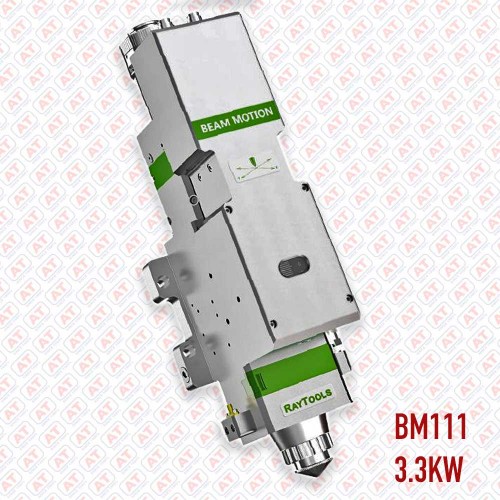

Raytools BM111 Auto Focus Laser Cutting Head.
Power rating 3.3KW; Standard auto focus laser cutting.
Key Features:
- Weight: 11KG
Rs. 525,000.00
1
Item(s) in Stock
BM111 Series Automatic Focusing Fiber Laser Cutting Head
Precision. Protection. Performance. — Designed by RAYTOOLS AG (Switzerland)
The BM111 Series is a high-performance automatic focusing fiber laser cutting head, launched in 2017 by RAYTOOLS AG, Switzerland. Built for demanding industrial applications, this cutting head offers automated focus control, exceptional dust protection, and robust design for stable high-power laser cutting.
At its core is a motorized drive unit that moves the focusing lens within a 22mm range via a precise linear mechanism. Programmable continuous focus adjustment allows for quick piercing of thick plates and automated cutting of materials with varying thicknesses and types. The BM111 also features enhanced optical and water-cooling systems to ensure long-term durability and reliability under sustained high power.
Key Features
- Triple Protective Lenses
- Equipped with three protective lenses to effectively guard both the collimation and focusing optics, extending the life of critical components.
- Automatic Motorized Focusing
- Enables fast, accurate focus adjustments at a speed of 170 mm/s with repeatability of 0.05 mm, minimizing manual intervention.
- Superior Dust Protection – IP65 Rated
- Features a patented sealed lens cover design that offers IP65-level dust resistance, providing complete dust protection even in harsh industrial environments.
- High-Speed Cutting Performance
- Optimized for speed and quality:
- 12mm SUS304 stainless steel at 0.7 m/min with 3000W
- 12mm Q235 carbon steel at 1.2 m/min with 3000W
Ideal Applications
- Laser cutting systems in metal fabrication
- Heavy-duty industrial processing
- Stainless steel, carbon steel, and alloy sheet cutting
- Automated high-volume production lines
Technical Specifications
- Focus Adjustment Range: 22 mm
- Focus Speed: 170 mm/s
- Focus Repeatability: 0.05 mm
- Protective Lenses: 3-layer system (collimating + focusing protection)
- Dust Protection Rating: IP65, sealed patented cover
- Cutting Speed (SUS304): 12mm @ 0.7 m/min @ 3000W
- Cutting Speed (Q235): 12mm @ 1.2 m/min @ 3000W
- Cooling System: Advanced water cooling
- Motorized Focus System: Yes
- Country of Origin: Switzerland
