Ball Bearings | Angular Contact Bearings | H-7000 Series | H7003C-P4 2RZ

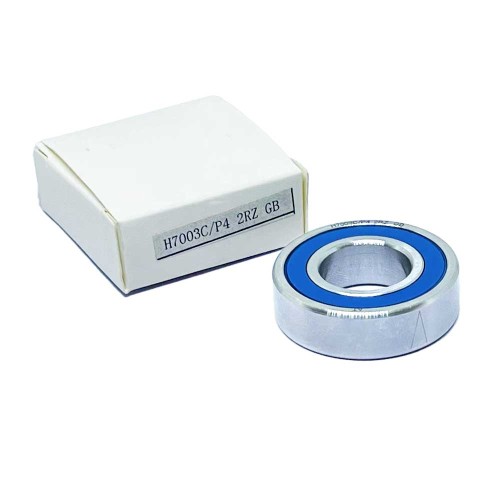

H7003C-P4 2RZ is AT Brand special purpose Ball Bearing. This high-speed Angular Contact Ball Bearing is designed to run at 24000 RPM. H7003C-P4 2RZ is a Low Fraction, Low Noise bearing and perfect to use in CNC Router Spindles. Each bearing is packed in single box and minimum order quantity is 1pcs.
Key Features:
  • Weight: 0.046KG
Rs. 1,632
59 Items In Stock
Unit Pcs
SKU H7003C-P4 2RZ
Category Ball Bearings
Sub Category Angular Contact Bearings
Series H-7000 Series

Product Description:

·     Name: H7003C-P4 2RZ

·     Category: Ball Bearings

·     Subcategory: Angular Contact Bearings

·     Series: H-7000 Series


·     AT

Material & Structure:

·     Cage Material: Polyamide

·     Bearing Material: GCR15 High Chrome Steel

·     Balls Material: HQI = Ceramic, Without HQI = Steel G10


·     Bearing Class: ABEC 3

·     Noise Class: Z3V3

·     ISO 9001 Certified Products

Special Feature:

·     Low Noise

·     High Speed

·     Minimum Fraction


·     China


·     Inner bore: 17mm

·     Outer Diameter: 35mm

·     Width: 10mm


·     Single Box Pack then Carton

·     Net Weight: 0.046KG.
